Atlas AENM25K151, Rivetnut Insert, 1/4-20 UNC-3B (.089-.151 Grip) Round Body, Countersunk Head/Keyed, Stainless Steel , Passivated
Part Number:
BR-AENM25K151
0
Review(s)
0
0
5
Your Price:
$21.0194
Retail Price:
$26.2743
Your Savings:
$5.2549
(20%)
Availability:
( 2580 In Stock )
Atlas AENM25K151, Rivetnut Insert, 1/4-20 UNC-3B (.089-.151 Grip) Round Body, Countersunk Head/Keyed, Stainless Steel , Passivated
Quantity
+
-
Add to Cart
Quantity Pricing
Quantity
Price
300 - 499
$20.5990
500 - 999
$20.1786
1000 - 1999
$19.5480
2000 - 3999
$19.1277
4000 - 7999
$18.4971
8000+
$18.0767
Put me on the Waiting List
Add to Gift Registry
Share
|
Product Type:
Fastener
COO:
US
ECCN:
EAR99
SCH. B:
7318.23.0000
Description
Specifications
Features
Atlas AENM25K151, Rivetnut Insert, 1/4-20 UNC-3B (.089-.151 Grip) Round Body, Countersunk Head/Keyed, Stainless Steel , Passivated
AENM25K151, Atlas Maxtite Series Rivetnut Insert, Unified, 1/4-20 UNC-3B Thread Size (.089-.151 Grip) (2.26-3.83mm Grip) Round Body, Countersunk Head, Keyed, Stainless Steel 300 Series, Passivated Per AMS2700 Class 4, Method 1, RoHS Compliant (NAS1330N4EK151)
Thread Size
:
1/4-20 UNC-3B
Head Height- [Unified]
:
[.089]
Type
:
Rivetnut Insert
NAS Part#
:
NAS1330N4EK151
Grip ID Mark
:
Blank
Head Key
:
Keyed
OEM Unit Of Measure
:
Unified
Body Material
:
Stainless Steel
Mechanical Lock
:
No
Body End
:
Open End
Style
:
Round Body
Manufacturer Part#
:
AENM25K151
Body Finish
:
Passivated
Material Detail
:
Stainless Steel 300 Series
Finish Detail
:
Passivated Per AMS2700 Class 4, Method 1
Grip Range [Unified]
:
.089-.151
Grip Range [Metric]
:
2.26-3.83mm
Head Type
:
Countersunk
Key Width (Nom) [Unified] mm
:
[.054] 1.37mm
Fastener Diameter (Nom) [Metric]
:
[8.43]
Set Body Length (Nom) [Unified] mm
:
[.440] 11.17mm
Minimum Grip [Unified] mm
:
[.089] 2.26mm
Key Height (Nom) [Unified] mm
:
[.023] 0.58mm
Keyway Width (Nom) [Unified] mm
:
[.062] 1.57mm
Keyway Length (Max) [Unified] mm
:
[.058] 1.47mm
Installed Thread Depth (Nom) [Unified] mm
:
N/A
Maximum Grip [Unified] mm
:
[.151] 3.83mm
Minimum Hole Size [Unified] mm
:
[.332] 8.43mm
Pull Up Factor (Nom) [Unified] mm
:
[.095] 2.41mm
Body Length (Nom) [Unified] mm
:
[.687] 17.45mm
Fastener Diameter (Nom) [Unified]
:
[.332]
Head Diameter- [Metric]
:
[13.43]
Head Height- [Metric]
:
[2.26]
Head Diameter- [Unified]
:
[.529]
RoHS ComPlaint
:
RoHS
Drill Size
:
[Q]
Available in Countersunk, Flathead and Full Hex
Atlas® MaxTite® blind threaded inserts are designed for high load applications.
Countersunk feature allow fastener to be installed flush with the surface of the sheet.
Available with rib or key features for high torque application.
The heavy duty MaxTite® types are designed for the most demanding applications.
They are installed from one side using “spin-pull” or “pull-to-pressure” installation tools.
Substitute/Alternative Item
Atlas AENM25K151, Rivetnut Insert, 1/4-20 UNC-3B (.089-.151 Grip) Round Body, Countersunk Head/Keyed, Stainless Steel , Passivated
BR-AENM25K151
(0)
( 2580 Available )
$21.0194
Availability
Buy
Sherex SXNM25K151, Rivetnut Insert, 1/4-20 UNC-3B (.089-.151 Grip) Round Body, Countersunk Head/Keyed, Stainless Steel , Passivated
BR-SXNM25K151
(0)
( 0 Available )
$3.5342
Currently On Backorder. Please See Substitute/Alternative Items Below
Buy
Frequently Bought Together
Marson M38980 Battery Tool BT-3, 3/16 - 1/4 Rivet Tool Kit (includes one tool with battery, battery charger, and carrying case) (DISCONTINUED BY MFG)
BR-M38980
(0)
( 0 Available )
$1,160.63
Not for Sale
Marson® M39031 Big Daddy Rivet Tool with 5/32 Inch, 3/16 Inch, 1/4 Inch Nosepiece
BR-M39031
(0)
( 805 Available )
$184.83
Availability
Buy
Marson® M79050 V-3 Pneumatic Rivet Tool; 1/8 Inch to 3/16 Inch
BR-M79050
(0)
( 162 Available )
$115.47
Availability
Buy

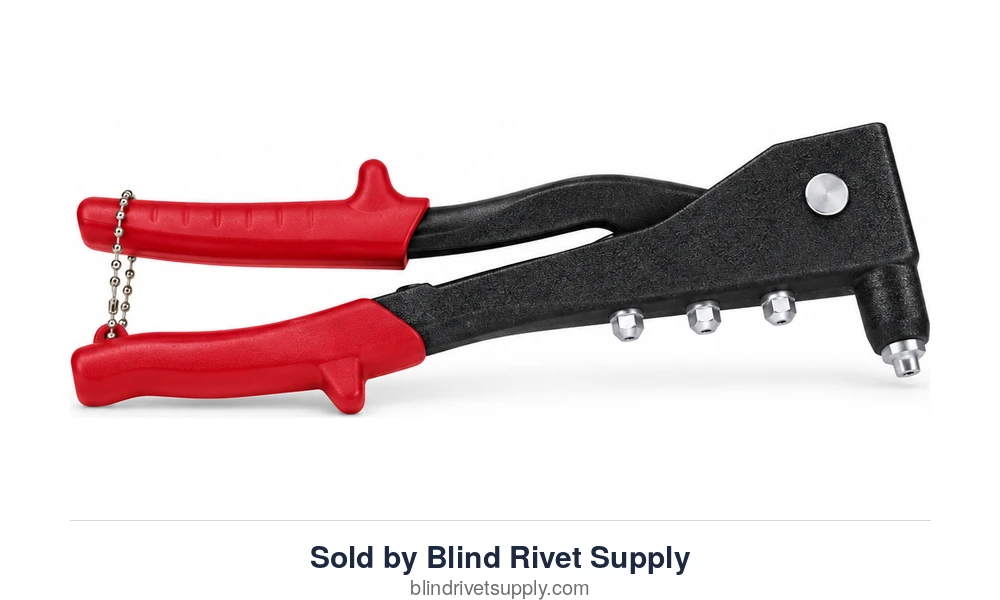

Marson® M39000 HP-2 Rivet Tool; 3/32 Inch, 1/8 Inch, 5/32 Inch, 3/16 Inch Nose Tips
