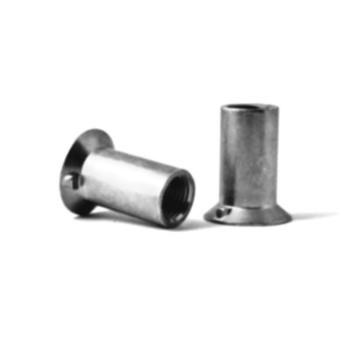

Thread Size
:
1/4-20 UNC-3B
Head Height- [Unified]
:
[.089]
NAS Part#
:
NAS1330N4EK151
OEM Unit Of Measure
:
Unified
Body Material
:
Stainless Steel
Manufacturer Part#
:
SXNM25K151
Material Detail
:
Stainless Steel 300 Series
Finish Detail
:
Passivated Per AMS2700 Class 4, Method 1
Grip Range [Unified]
:
.089-.151
Grip Range [Metric]
:
2.26-3.83mm
Key Width (Nom) [Unified] mm
:
[.054] 1.37mm
Fastener Diameter (Nom) [Metric]
:
[8.43]
Set Body Length (Nom) [Unified] mm
:
[.440] 11.17mm
Minimum Grip [Unified] mm
:
[.089] 2.26mm
Key Height (Nom) [Unified] mm
:
[.035] 0.88mm
Keyway Width (Nom) [Unified] mm
:
[.062] 1.57mm
Keyway Length (Max) [Unified] mm
:
[.058] 1.47mm
Installed Thread Depth (Nom) [Unified] mm
:
N/A
Maximum Grip [Unified] mm
:
[.151] 3.83mm
Minimum Hole Size [Unified] mm
:
[.332] 8.43mm
Pull Up Factor (Nom) [Unified] mm
:
[.095] 2.41mm
Body Length (Nom) [Unified] mm
:
[.687] 17.45mm
Fastener Diameter (Nom) [Unified]
:
[.332]
Head Diameter- [Metric]
:
[13.43]
Head Height- [Metric]
:
[2.26]
Head Diameter- [Unified]
:
[.529]
