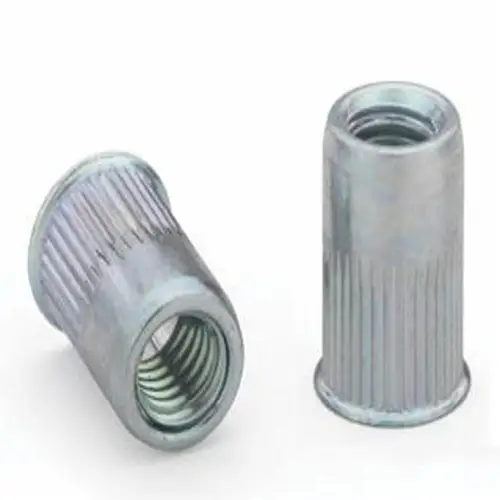

Marson MLR Series M57671 "L" Style Round Body Splined Rivetnut Insert; 5/16-18 UNC-2B, (0.027 - 0.150 Inch Grip), Large Flange Head, Aluminum, Clear Protective Coating
Part Number:
BR-M57671
0
Review(s)
0
0
5
Your Price:
$0.4786
Retail Price:
$0.5983
Your Savings:
$0.1197
(20%)
Availability:
( 4100 In Stock )
Marson MLR Series M57671 "L" Style Round Body Splined Rivetnut Insert; 5/16-18 UNC-2B, (0.027 - 0.150 Inch Grip), Large Flange Head, Aluminum, Clear Protective Coating
Quantity
+
-
Add to Cart
Quantity Pricing
Quantity
Price
500 - 999
$0.4403
1000 - 1999
$0.4068
2000 - 3999
$0.3781
4000 - 7999
$0.3685
8000 - 15999
$0.3590
16000 - 31999
$0.3494
32000 - 63999
$0.3398
64000 - 127999
$0.3302
128000+
$0.3207
Put me on the Waiting List
Add to Gift Registry
Share
|
Product Type:
Fastener
COO:
TW
ECCN:
EAR99
SCH. B:
7616.10.6000
Description
Specifications
Features
Marson MLR Series M57671 "L" Style Round Body Splined Rivetnut Insert; 5/16-18 UNC-2B, (0.027 - 0.150 Inch Grip), Large Flange Head, Aluminum, Clear Protective Coating
Marson® MLR Series "L" Style Round Body Splined Rivetnut Insert, Unit of Measure: Inch, 0.530 Inch Decimal Equivalent, Thread Size: 5/16-18 UNC-2B, 0.027 Inch (0.69mm) Minimum Grip, 0.150 Inch (3.81mm) Maximum Grip, 0.027 - 0.150 Inch (0.69 - 3.81mm) Grip Range, 0.685 Inch (17.40mm) Head Diameter, 0.035 Inch (0.89mm) Head Height, Large Flange Head, 0.530 Inch (13.46mm) Minimum Hole Size, 0.536 Inch (13.61mm) Maximum Hole Size, 17/32 Inch Drill Size, Body End: Open End, 0.690 Inch (17.53mm) Body Length, Set Body Length: 0.470 Inch (11.94mm), Installed Thread Depth: N/A, Aluminum Body Material, Material Detail: Aluminum 5056, Clear Protective Coating Body Finish, Finish Detail: Clear Protective Coating, RoHS Compliant Yes
Thread Size
:
5/16-18 UNC-2B
Installed Thread Depth
:
N/A
Type
:
"L" Style Round Body Splined
Body Material
:
Aluminum
Body End
:
Open End
RoHS Compliant
:
Yes
Body Finish
:
Clear Protective Coating
Material Detail
:
Aluminum 5056
Finish Detail
:
Clear Protective Coating
Head Type
:
Large Flange
Minimum Grip
:
0.027 Inch (0.69mm)
Maximum Grip
:
0.150 Inch (3.81mm)
Unit of Measure
:
Inch
Head Height
:
0.035 Inch (0.89mm)
Maximum Hole Size
:
0.536 Inch (13.61mm)
Head Diameter
:
0.685 Inch (17.40mm)
Item
:
Rivetnut Insert
Body Length
:
0.690 Inch (17.53mm)
Decimal Equivalent Diameter
:
0.530 Inch
Grip Range
:
0.027 - 0.150 Inch (0.69 - 3.81mm)
Minimum Hole Size
:
0.530 Inch (13.46mm)
Set Body Length
:
0.470 Inch (11.94mm)
Drill Size
:
17/32 Inch
Large flange ribbed rivet nut provides increased turn-out resistance vs conventional rivet nut and large flange for improved push out performance
